Tensile Tester

puncture tester
  • HMI touch screen operation
  • PLC base control unit
  • Precision ball screw for accurate speed and displacement
  • Adjustable test speed
  • wide range of fixture for push and pull testing
  • Max Min Auto return
  • Puncture force and displacement measurement.
  • Can test according to ISO 37, ASTM D882, ASTM E4, ASTM D3330, ASTM F904,ASTM F88, ASTM D1938, JIS P8113, GB 8808, GB/T 1040.1-2006, GB/T 1040.2-2006, GB/T 1040.3-2006, GB/T 1040.4-2006, GB/T 2791,GB/T 1040.5-2008, , GB/T 12914-2008, GB/T 17200, GB/T 16578.1-2008, GB/T 2790, GB/T 2792, GB/T 17590, GB/T 4850-2002,QB/T 2358, QB/T 1130, GB/T 7122,
Technical Data
Test Range :  0-500N (Standard, 50N,100N,200N,1000N are optional)
Speed :          1-500 mm/m (stepless speed changing)
Resolution :    0.5% F.S.
 Effective stroke 800mm(customization available)

Optional : Calibration Report

Other Type

Carbide Pin

purpose of carbide pin is to measure and inspect the diameter of small holes, it also can be used as a test bar for geometric deviations measurements.
custome diameter size and custom length
accuracy +/-0.002mm.

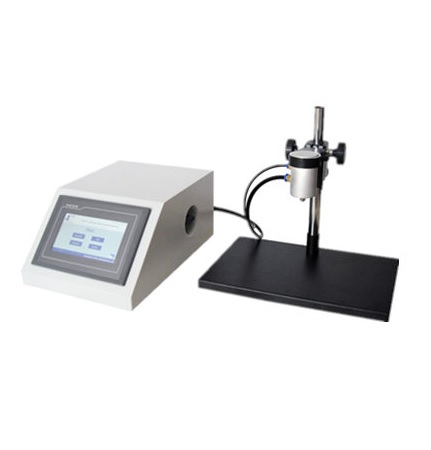

Burst Tester

Burst tester takes the pressure decay method and is suitable for the quantitative determination of sealing strength, heating sealing quality, burst pressure and leakage of flexible and aseptic packages.
