Carton Box Compression Tester
Technical Data
Pressure range : 0-10KN
Force resolution : 0.1N, Display error: ±2%
Display variation : ≤2%, Back to zero error: ±0.2%FS
Deformation measurement accuracy : ±1mm
Compressing speed adjustable range : 5mm/min~90mm/min
Compressing speed relative error : ±3%(within 5~90mm/min)
Standard compressing speed : 12mm/min
Stacking test speed : 5mm/min
Lower platen stroke : 800mm
Test space : 400mm(L)*600mm(W)*600mm(H)
600mm(L)*800mm(W)*1000mm(H)
1000mm(L)*1000mm(W)*1200mm(H)
1200mm(L)*1200mm(W)*1200mm(H) are optional
Upper and lower platen parallelism degree : ≤1mm
Dimension 850mm(L)*600mm(W)*1100mm(H)(varies with different test space)
Weight 200kg(varies with different test space)
Pressure range : 0-10KN
Force resolution : 0.1N, Display error: ±2%
Display variation : ≤2%, Back to zero error: ±0.2%FS
Deformation measurement accuracy : ±1mm
Compressing speed adjustable range : 5mm/min~90mm/min
Compressing speed relative error : ±3%(within 5~90mm/min)
Standard compressing speed : 12mm/min
Stacking test speed : 5mm/min
Lower platen stroke : 800mm
Test space : 400mm(L)*600mm(W)*600mm(H)
600mm(L)*800mm(W)*1000mm(H)
1000mm(L)*1000mm(W)*1200mm(H)
1200mm(L)*1200mm(W)*1200mm(H) are optional
Upper and lower platen parallelism degree : ≤1mm
Dimension 850mm(L)*600mm(W)*1100mm(H)(varies with different test space)
Weight 200kg(varies with different test space)
Optional : Calibration Report
Other Type
Force Gauge
Bore Gauge used to accurately measure the inside diameter of a hole, cylinder or pipe. In conjunction with a micrometer, a bore gauge will give you the exact reading of a bore size

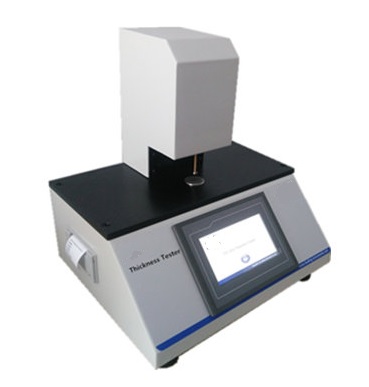

Automated Thickness Tester
Thickness Gauge is specifically designed to quickly and accurately measure the thickness of a variety of substrates including film, paper, board, foil, tissue and textiles.
